» Some General Precautions When Handling the Ink Supplies

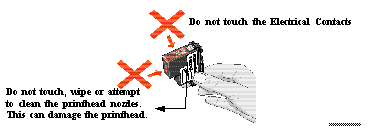

CAUTION: Do not touch, wipe or attempt to clean the Printhead nozzles. This can damage the Printhead.

Handle the Ink Supplies with care. In particular the Printhead, which is a high precision device, must be handled very carefully.

Do not touch the Printhead nozzles.
Do not touch the Electrical contacts on the Printhead.
Do not put the Printhead down on the nozzles.
Do not be rough when handling the Printheads. Always set them down gently.
Do not drop the Printheads.
Proper handling will assure optimum performance throughout the Printhead life.
Do not touch the end of the Ink Cartridge which is inserted into the Printer as there may be a small amount of ink on the connection.
Avoid storing partially used Ink Cartridges on their ends.
