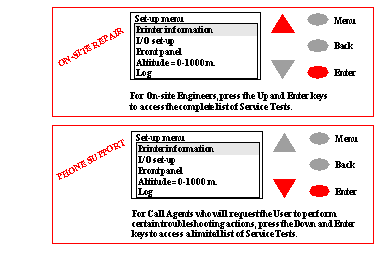

» Entering the Service Utilities Menu

Press the or key until the front panel displays the Setup Menu and then press Enter.

Once inside the Setup Menu, Press the following key combination to access the special Service Menu.

Once inside the Service Tools Menu, press the or key until the front panel displays Service Utilities and then press Enter.

Press the Enter key to begin a specific utility when the required Service Utility is highlighted.
