» Entering the Service Calibrations Menu

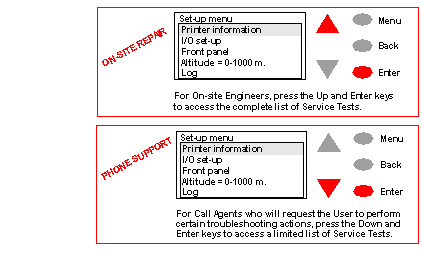

Press the or key until the front panel displays the Set-up Menu and then press Enter.

Once inside the Setup Menu, Press the following key combination to access the special Service Menu.

Once inside the Service Tools Menu, press the or key until the front panel displays Service calibrations and then press Enter.

Press the Enter key to begin a specific calibration when the required Service Calibration is highlighted.
