The PSU is used to supply the power required by
the printer in any condition and has the following features:
130W maximum continuous average power (171 W at peak) with power
factor correction.
4 outputs with voltages of +5.0V, +3.3V, +12V and +32V. Operates
with convection cooling when +32V output is at minimum load but
the Power Supply is cooled by forced air provided by a fan in the
Power Supply enclosure when the +32V output is loaded.

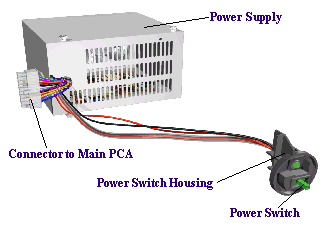

The Power Supply is connected directly to the Power Switch and a
green LED located at the front of the Printer on the bottom left
hand
side.
The Power Supply operates over a voltage range as described in
the following table:
Rated Voltage
100-240 VAC
Normal Operating Range
88 - 264 VAC
Functional Operating Range
80 264 VAC
Rated Frequency
50/60 Hz
Frequency Test Limits
47 -63 Hz
As explained earlier, the Power Supply provides +5.0V, +3.3V, +12V
and +32V to the Main PCA with the following maximum output currents:
Voltage
Maximum Output
Current (A)
Systems
+3.3V
8.0
Digital Logic & EIO cards
+5.0V
1.7
Sensors, Front Panel, Bitronics and some
analog logic in Main PCA
+12.0V
0.45
Aerosol & Cooling fans and to generate
the 5.0V going to the carriage
