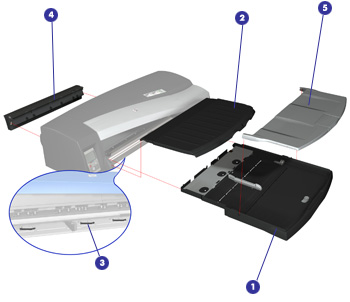

paper feed assemblies

input tray assembly (1)
  Q1292-60097
output tray assembly (1)
  Q6656-60072
drawer and spring cam (3)
  C8108-67050
cleanout assembly (1)
  Q6655-60059
Input Tray Cover (1)
  C7791-60297
