Roller Lubrification Kit



	WARNING: This procedure is for Service Engineers only. Users should perform the procedure described in the User's Guide.



	WARNING: Prevent water or other liquids from running onto electrical components or circuits, or through openings in the module.

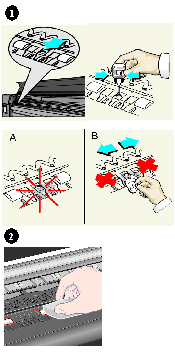

	1. Open the window and apply 10 drops of oil to each hole in the Platen.



	NOTE: Avoid oil spills and make sure you remove any excess oil.



	2. To clean the Roller Wheels, close the window and perform the Turn Drive Roller Utility. Use the cloth provided.



	WARNING: Do not touch the rotating Wheels with your hands.



	Press Cancel when you have completed the cleaning procedure.
