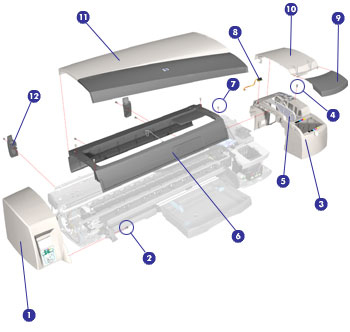

cover assemblies

	left cover (1)
	Q6655-60091

	screw (2)
	0515-2811

	right cover (1)
	C7796-60064

	screw (2)
	0515-2812

	filter assembly (1)
	C8109-67024

	back cover (center cover) (1)
	Q6655-60092

	screw (6)
	0515-2811

	door sensor assembly (1)
	C7790-60119

	ink cartridge door (1)
	Q6655-60092

	printhead door assembly (includes ink cartridge door hinge) (1)
	Q6655-60094

	access door assembly (1)
	C7796-60020

	rear trim kit (1)
	C7791-60216
