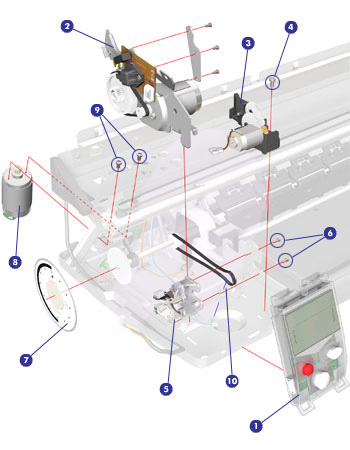

left hand assemblies

	front panel (1)
	Q6655-60098

	LF motor assembly (paper-axis motor) (1)
	C8108-67038

	ramp drive assembly (1)
	C8108-67040

	screw (1)
	0515-2812

	output mechanism assembly (1)
	C8108-67042

	screw (2)
	0515-2812

	encoder disc (1)
	C8108-67051

	carriage motor assembly (1)
	C7791-60143

	screw (2)
	0515-2812

	output belt (1)
	C8108-67048
