NVM contents page


The NVM Contents Page contains the following information:

  -EEROM values dump containing all the values stored in the EEROM (Calibration, etc.).
-Printheads Acumen dump.
-Cartridges Acumen dump.

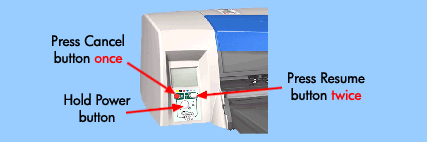

  To print the NVM Contents Page, hold the power button down and press the cancel button once and the resume button twice.

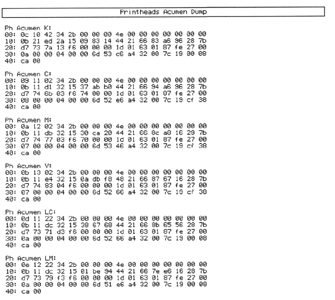

  Sample of the NVM Contents Page (page 1 of 3): (click here to enlarge picture)

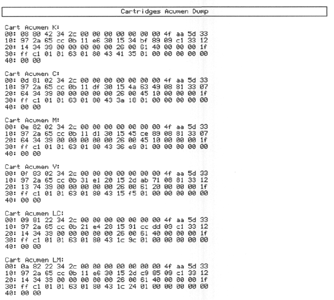

  Sample of the NVM Contents Page (page 2 of 3): (click here to enlarge picture)

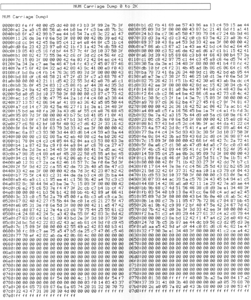

  Sample of the NVM Contents Page (page 3 of 3): (click here to enlarge picture)
