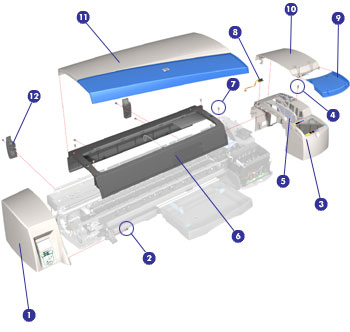

cover assemblies (hp designjet 120/120nr)

	left cover (1)
	C7791-60137

	screw (2)
	0515-2811

	right cover (1)
	C7791-60138

	screw (2)
	0515-2812

	filter assembly (1)
	C7790-60295

	back cover (center cover) (1)
	C7791-60256

	screw (6)
	0515-2811

	door sensor assembly (1)
	C7790-60119

	ink cartridge door (hp designjet 120) (1)
	C7791-60130
	ink cartridge door (hp designjet 120nr) (1)
	C7791-60131

	printhead door assembly (includes ink cartridge door hinge) (1)
	C7790-60106

	access door assembly (1)
	C7791-60139

	rear trim kit (hp designjet 120) (1)
	C7791-60216
