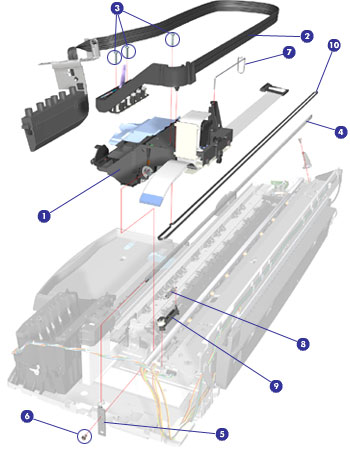

scan-axis assemblies

	carriage assembly (includes trailing cable and belt) (hp designjet 120/120nr) (1)
	C7791-60142

	carriage assembly (includes trailing cable and belt) (hp designjet 130/130nr) (1)
	C7791-60279

	tubes assembly (hp designjet 120/120nr) (1)
	C7791-60129

	tubes assembly (hp designjet 130/130nr) (1)
	C7791-60291

	screw (3)
	0515-2675

	encoder strip (1)
	C7791-60205

	encoder strip holder (1)
	C7790-60104

	screw (1)
	0515-2812

	tube holder (1)
	C7790-60124

	belt tension spring (1)
	C7790-60125

	turnaround assembly (includes belt tension spring) (1)
	C7791-60212

	carriage belt (1)
	C7791-60233
