hp designjet 90/120/130 series printers

select printer | 90/120/130 series | parts information | exploded views

hp designjet 90/120 and 130 series printers

» exploded views

» customer replaceable parts

» exploded views

» cover assemblies (hp designjet 120/120nr)
» cover assemblies (hp designjet 130/130nr)

» printer labels

» right hand assemblies

» left hand assemblies

» scan-axis assemblies

» top paper path assemblies

» rear paper path assemblies

» paper feed assemblies (120/120nr)
» paper feed assemblies (130/130nr)

» cable harnesses

» ink supplies and accessories (120/120nr)
» ink supplies and accessories (130/130nr)

» printer stand and basket

» rollfeed components

» part number selector



	» send feedback or comments

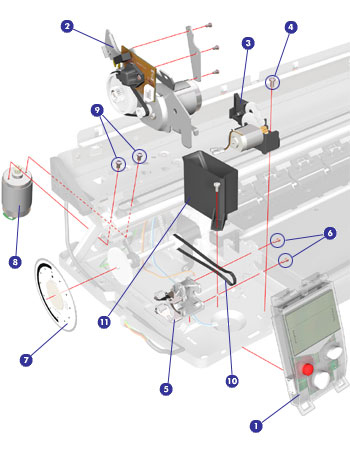

left hand assemblies

	front panel (hp designjet 120/120nr) (1)
	C7791-60141

	front panel (hp designjet 130/130nr) (1)
	C7790-60445

	LF motor assembly (paper-axis motor) (1)
	C8108-67038

	ramp drive assembly (1)
	C8108-67040

	screw (1)
	0515-2812

	output mechanism assembly (1)
	C8108-67042

	screw (2)
	0515-2812

	encoder disc (1)
	C8108-67051

	carriage motor assembly (1)
	C7791-60143

	screw (2)
	0515-2812

	output belt (1)
	C8108-67048

	spittoon (1)
