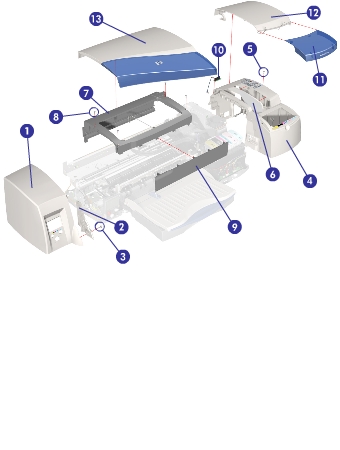

cover assemblies (10ps, 20ps and 50ps)

	left cover (1)
	C7790-60118

	left trim (1)
	C7790-60108

	screw (2)
	0515-2811

	right cover (1)
	C7790-60117

	screw (1)
	0515-2811

	filter assembly (1)
	C7790-60295

	back cover (1)
	C7790-60100

	screw (4)
	0515-2811

	front cover (1)
	C7790-60102

	door sensor assembly (1)
	C7790-60119

	ink cartridge door 10ps (1)
	C7790-60292

	ink cartridge door 20ps (1)
	C7790-60293

	ink cartridge door 30ps (1)
	C7790-60294

	printhead door assembly (1)
	C7790-60106

	access door assembly (1)
	C7790-60086
