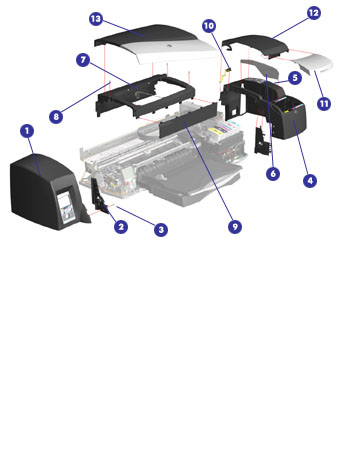

cover assemblies (30 and 30n)

	left cover (1)
	C7790-60447

	left trim (1)
	C7790-60444

	screw (2)
	0515-2811

	right cover (1)
	C7790-60456

	screw (1)
	0515-2811

	filter assembly (1)
	C7790-60295

	back cover (1)
	C7790-60100

	screw (4)
	0515-2811

	front cover (1)
	C7790-60102

	door sensor assembly (1)
	C7790-60119

	ink cartridge door 30 (1)
	C7790-60452

	ink cartridge door 30n (1)
	C7790-60453

	printhead door assembly (1)
	C7790-60457

	access door assembly (1)
	C7790-60443
