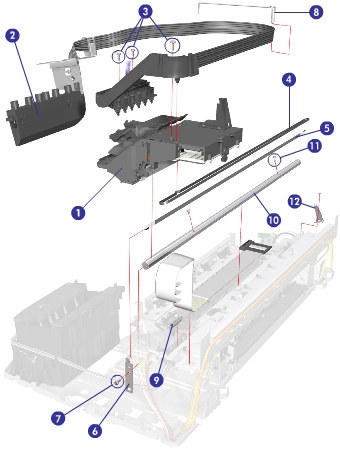

scan-axis assemblies

	carriage assembly (10ps, 20ps and 50ps) (1)
	C7790-60278

	carriage assembly (30 and 30n) (1)
	C7790-60460

	tubes assembly (10ps, 20ps and 50ps) (1)
	C7790-60112

	tubes assembly (30 and 30n) (1)
	C7790-60446

	screw (3)
	0515-2675

	carriage belt (1)
	C7790-60203

	encoder strip (1)
	C7790-60099

	encoder strip holder (1)
	C7790-60104

	screw (1)
	0515-2812

	tube holder (1)
	C7790-60124

	belt tensioner spring (1)
	C7790-60125

	carriage rod (1)
	C7790-60147

	screw (2)
	0515-2598

	left encoder strip holder (1)

-	turnaround assembly (1)
	C7790-60297
