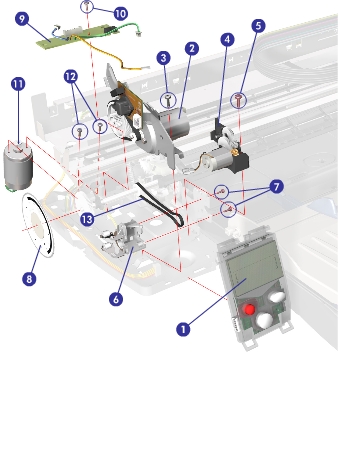

left hand assemblies

	front panel assembly (10ps, 20ps and 50ps) (1)
	C7790-60109

	front panel assembly (30 and 30n) (1)
	C7790-60445

	LF motor assembly (1)
	C8108-67038

	screw (1)
	0515-2812

	ramp drive assembly (1)
	C8108-67040

	screw (1)
	0515-2812

	output mechanism support assembly (1)
	C8108-67042

	screw (2)
	0515-2812

	encoder disc (4)
	C8108-67051

	2nd bin PCBA (10ps, 20ps and 50ps) (1)
	C7790-60200

	screw (1)
	0515-2812

	carriage motor assembly (1)
	C7790-60110

	screw (2)
	0515-2812

	output belt (1)
	C8108-67048
