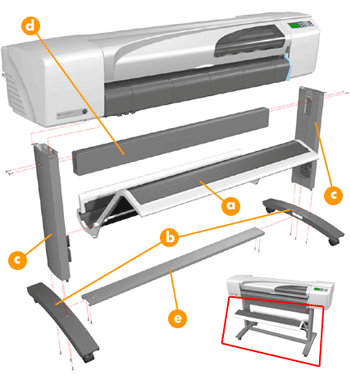

printer support

		bin assembly (24" model) flint grey
		C7782-60001
		bin assembly (24" model) graphite grey
		C7781-60005
		bin assembly (42" model) flint grey
		C7770-60148
		bin assembly (42" model) graphite grey
		C7780-60002

		foot assembly
		C7770-60002

		legs assembly
		C7770-60021

		X-brace assembly (24" model)
		C7781-60004
		X-brace assembly (42" model)
		C7770-60020

		foot-brace assembly (42" model)
		C7770-60031
		foot-brace assembly (24" model)
		C7769-60219

		foot kit 24" model only
		C7769-60273

		hardware kit (includes screw driver)
		C7770-60018
