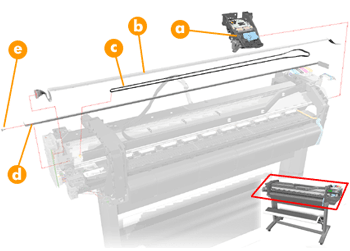

carriage assembly

		carriage assembly
		C7769-60272

		trailling cable (24" model)
		C7769-60271
		trailling cable (42" model)
		C7770-60266

		belt (24" model)
		C7769-60182
		belt (42" model)
		C7770-60014

		encoder strip (24" model)
		C7769-60183
		encoder strip (24" model)
		C7770-60013

		screw
		0624-0769
