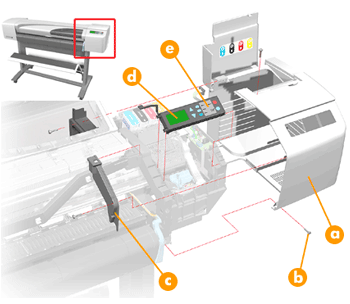

right hand cover

		right hand cover - grey (hp designjet 500 series only)
		C7769-60159
		right hand cover - black (hp designjet 800 series only)
		C7779-60159

		screws
		0624-0771

		trim kit (includes the front and back trims for the left and right sides
		C7769-60160

		front panel
		C7769-60161

		front panel overlay (english)
		C7769-60111
		front panel overlay (korean)
		C7769-60112
		front panel overlay (taiwanese)
		C7769-60113
		front panel overlay (german)
		C7769-60114
		front panel overlay (french)
		C7769-60115
		front panel overlay (spanish)
		C7769-60116
		front panel overlay (italian)
		C7769-60117
		front panel overlay (japanese)
		C7769-60118
		front panel overlay (portuguese)
		C7769-60119
		front panel overlay (chinese)
		C7769-60120
