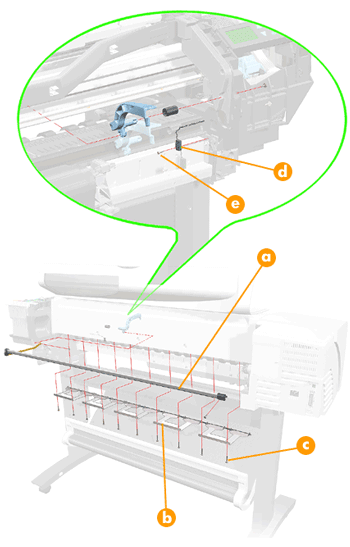

pinch-arm assemblies

		pinch-arm mechanism (24" model)
		C7769-60181
		pinch-arm mechanism (42" model)
		C7770-60015

		pinch-arm
		C7769-60175

		screw
		0515-2521

		pinch-arm sensor
		C7769-60194

		screw
		624-0768
