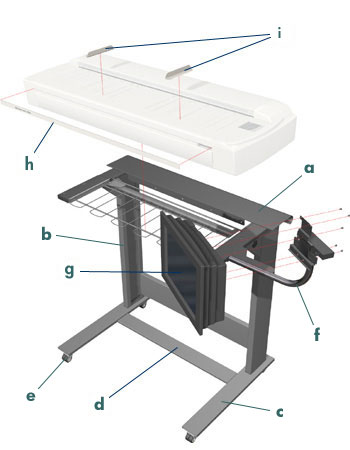

scanner stand and touch screen (copier cc800ps)

		top bar with guide (1)
		Q1261-60053

		leg (2)
		Q1278-60021

		feet (includes castors) (2)
		Q1278-60022

		bottom and rear bar (2)
		Q1278-60023

		castors (2)
		Q1261-60055

		arm (1)
		Q1261-60054

		touch screen (click here for individual component part number) (1)

		name plate (hp designjet copier cc800ps) (1)
		Q1261-60030

		paper guides (1)
		Q1261-60036

		assembly kit (1)
		Q1261-60056
