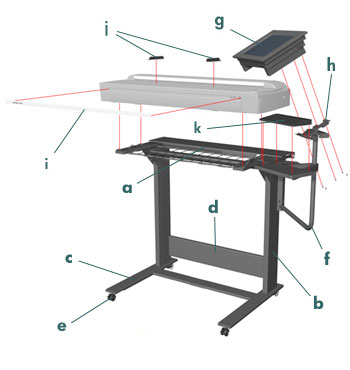

scanner stand and touch screen (815mfp)

		top bar with guide (1)
		Q1261-60053

		leg (2)
		Q1278-60021

		feet (includes castors) (2)
		Q1278-60022

		bottom and rear bar (2)
		Q1278-60023

		castors (2)
		Q1261-60055

		arm (1)
		Q1278-60024

		touch screen (click here for individual component part number) (1)

		bracket (1)
		Q1278-60045

		name plate (hp designjet 815mfp) (1)
		Q1279-60002

		paper guides (1)
		Q1278-60020

		assembly kit (1)
		Q1278-60046

		keyboard english (1)
		Q1279-60005
		keyboard french (1)
		Q1279-60006
		keyboard italian (1)
		Q1279-60007
		keyboard german (1)
		Q1279-60008
		keyboard spanish (1)
		Q1279-60009
		keyboard portuguese (1)
		Q1279-60010
		keyboard chinese (1)
		Q1279-60011
		keyboard taiwanese (1)
		Q1279-60012
		keyboard japanese (1)
		Q1279-60013

		assembly kit (1)
		Q1261-60024
