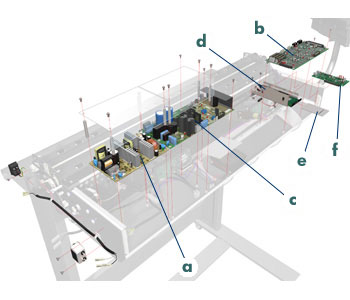

electronic boards

		power supply (1)
		Q1261-60001

		main electronics board (1)
		Q1261-60002
		(copier cc800ps only)
		main electronics board (1)
		Q1278-60002
		(815mfp and scanner 4200)

		camera drive board(1)
		Q1261-60011

		card reader assembly (1)
		Q1261-60046
		(copier cc800ps only)
		card reader assembly (1)
		Q1278-60017
		(815mfp and scanner 4200)

		smart card (1)
		Q1261-60045
		(copier cc800ps only)
		smart card (1)
		Q1278-60016
		(815mfp and scanner 4200)

		interface board (1)
		Q1261-60015
		(copier cc800ps only)
		interface board (1)
		Q1278-60015
		(815mfp and scanner 4200)
