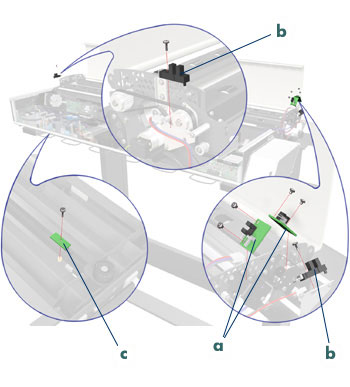

sensors

		media sensor (2)
		Q1261-60017

		thickness sensor (2)
		Q1261-60021

		lamp sensor (1)
		Q1261-60012
