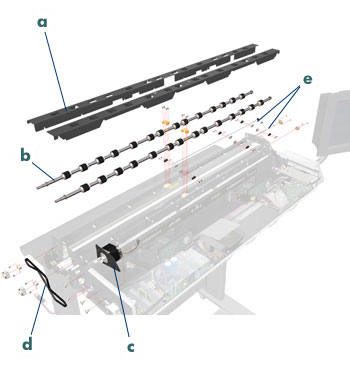

drive assemblies

		roller shields (2)
		Q1261-60035

		rollers (2)
		Q1261-60025

		stepper motor assembly (1)
		Q1261-60018

		belt (1)
		Q1261-60029

		media detector wires (2)
		Q1261-60033
