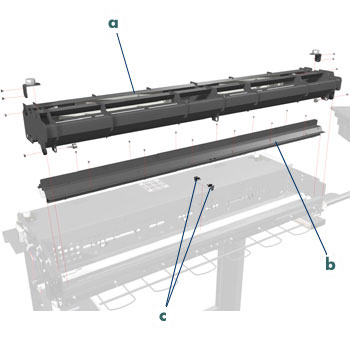

bottom assemblies

		mirror chassis (1)
		Q1278-60009

		reflector assembly (1)

		Q1278-60011

		stitching wire (1)
		Q1261-60008
