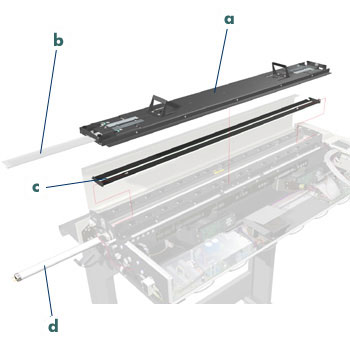

top assemblies

		guide plate (1)
		Q1261-60028
		(copier cc800ps only)
		guide plate (1)
		Q1278-60010
		(815mfp and scanner 4200)

		glass plate (1)
		Q1261-60010

		white background assembly (1)
		Q1278-60018

		fluorescent lamp (1)
		Q1261-60027
