How to Interpret the Service Information Pages

The Service Information Pages contain the following information:

Current Information.

Printer Usage Information.

Event Logs.

Calibration Status.

Network and I/O Configuration.

It is possible to print the Service Information Pages either through the Front Panel or through the Embedded Web Server:

Front Panel: Setup menu - Information Menu - Internal Prints - Print Service Information.

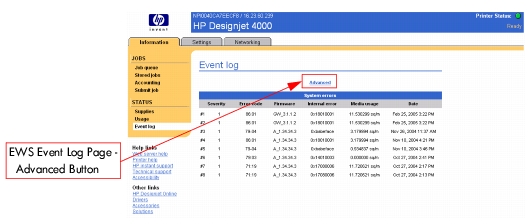

Embedded Web Server: Information - Event Log - Advanced

Even the Printer cannot print, the Information Pages are still accessible through the Embedded Web Server.

Main Characteristics

Each Service Information page fits on a sheet of A4/A-size media (so that it can be faxed if necessary).

Only available in English (except the current information page).

From the Front Panel, you can choose to print ALL pages or just select the specific pages that are needed. If ALL pages are printed:

- Nesting is turned ON automatically (and turned OFF once all the pages have been printed).

- Nesting cannot be mixed with other jobs in the queue.

Each page can be printed from the Web browser when using the Embedded Web Server.

Each page can be sent by e-mail from the Web Browser when using the Embedded Web Server (File - Send - Page by E-mail).

You can see the same information through the Front Panel or the Embedded Web Server.
