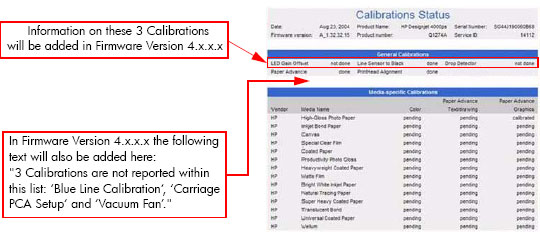

Calibrations Status
This page contains the following information:
- General Calibrations (performed by Service Engineers).
- Media Specific Calibrations (performed by the User).
General Calibrations
- LED Gain Offset and Line Sensor to Black relate to the Line Sensor
and these are done when performing the Line Sensor Calibration.
- Drop Detector relates to the Drop Detector or Service Station
calibration.
- Paper Advance relates to the Service Paper Advance Calibration.
- Printhead Alignment relates to the Printhead Alignment which
changes to `pending` when a Printhead is replaced and the Printhead
Alignment has not been performed.
When a component is replaced, the corresponding calibration is NOT automatically set to `NOT DONE`. This is because the Printer does not know that there is a new part installed.
Media Specific Calibrations
This section shows the following for each type of media:
