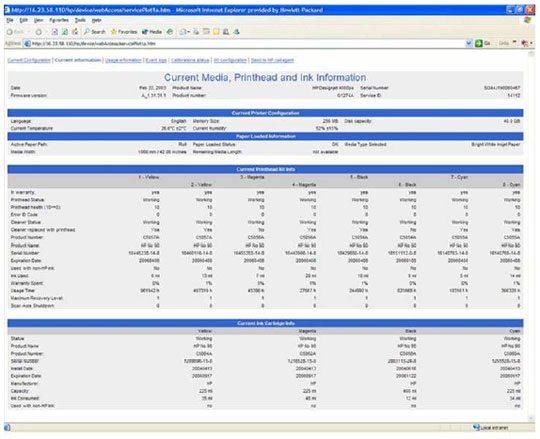

The first two lines are available at the beginning of each Service Information Page and contains standard information (like Service ID, Firmware version).
- Temperature and Humidity: The sensors are located on the ISS PCA
(at the top of the Ink Cartridges).
- Active Paper Path: Whether Roll or Cut Sheet is currently loaded.
- Remaining Media Length: Currently this will show "not available" all
the time since the media length tracking function in not available.
- Printhead Status: 'OK', 'Missing', 'Reseat', 'Replace' or 'Remove'.
- Expiration Date: Manufacture date (date marked on the actual
Printhead) + 24 months.
- Used with non-HP ink: Can be reset to NO only when a new
Printhead has been installed and neither the Ink Tubes nor the Ink
Cartridges have been marked as "Used with non-HP ink = Yes".
- Warranty spent: Percentage (%) versus 1000ml.
- Scan Axis Shutdown: Corresponds to a media jam.

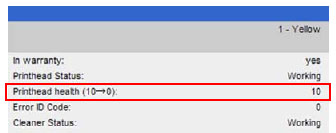

- Printhead Health: This represents the number of nozzles out of service
during the last drop detection that was performed.
|
Number of Nozzles Out |
Printhead Health |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

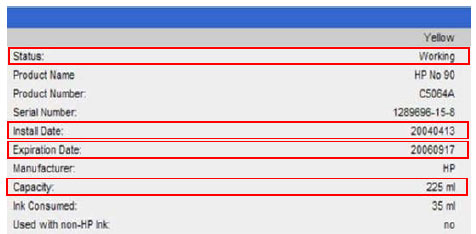

- Cartridge Status: 'OK', 'Missing', 'Low', 'Very Low', 'Empty', 'Reseat'
or 'Replace'.
- Expiration Date: Manufacture date (date marked on the actual Ink
Cartridge) + 30 months.
- Install Date: Corresponds to the internal date of the Printer (RTC) when
the Ink Cartridge was installed for the first time.
- Capacity: Total capacity of the Ink Cartridge.
