Replace Cutter

The purpose of this Service Utility is to move the Carriage to a position where the Cutter can be replaced easily.

Perform the Replace Cutter utility as follows:

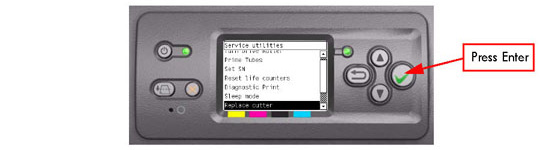

1. In the Service Utilities submenu, scroll to "Replace Cutter" and press Enter.

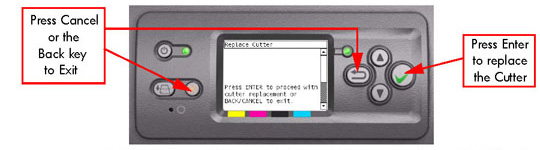

2. When the following message appears on the front panel, you must select whether you would like to continue with replacing the Cutter by pressing the Enter key. Press Back or Cancel to exit the utility.

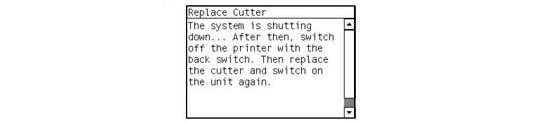

3. The Carriage will move to the Cutter replacement position and the following message will be displayed on the Front Panel. After a few seconds the Printer will begin to shutdown.

4. Before replacing the Cutter, make sure that you switch the Printer OFF from the rear.
