Carriage Setup
The purpose of this Service Utility is to reset the ink short thresholds after replacing the Carriage PCA.
From Firmware Version 4.x.x.x, "Carriage Setup" has been
renamed "Carraige PCA Calibration" and has moved from
Service Utilities to the Service Calibrations section.
Perform the Carriage Setup utility as follows:

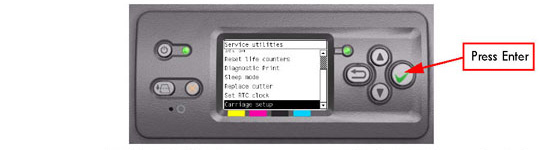

1. In the Service Utilities submenu, scroll to "Carriage Setup" and press Enter.

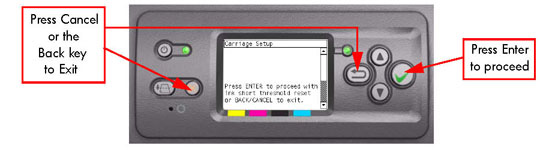

2. When the following message appears on the front panel, you must select whether you would like to continue with the Carriage Setup by pressing Enter. Press Back or Cancel to exit the utility.

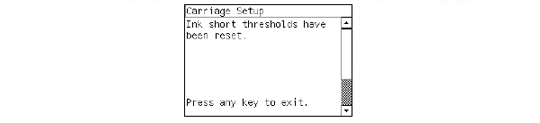

3. If the Ink Short Thresholds have been reset correctly, the following message
will be displayed on the Front Panel. Press any key to exit:
If any of the Printhead ink short thresholds cannot be reset or if the Printheads info cannot be accessed, it could point to a possible Firmware error.
If any of the Printhead ink short thresholds cannot be reset or if the Printheads
info cannot be accessed, it could point to a possible Firmware error.
4. If the utility exits correctly, OK will be displayed on the Front Panel.
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
