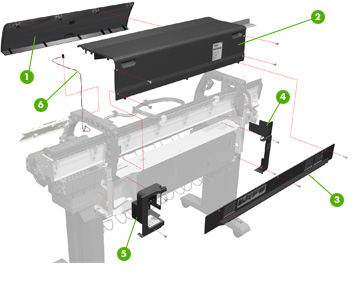

Center Covers


	1. Window (1) Q1273-60057 2. Top Cover (1) Q1273-60052 3. Rear Door (1) Q1273-60107 4. Left Connector Cover (1) Q1273-60105 5. Right Connector Cover (1) Q1273-60106 6. Window Sensor (1) Q1273-60072
