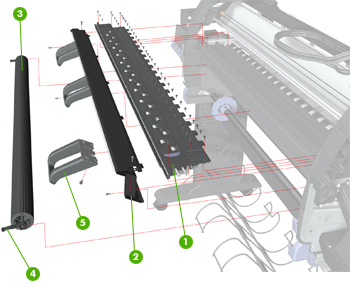

Paper Path Assemblies


	1. Center Platen (1) Q1273-60041 2. Front Platen (1) Q1273-60060 3. Input Roller (1) Q1273-60058 4. Input Roller Levers (2) Q1273-60103 5. Media Deflectors Kit (1) Q1273-60073
