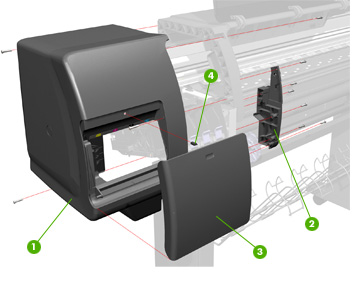

Left Hand Cover


	1. Left Hand Cover (without Door) (1) Q1273-60053 2. Left Hand Trim (1) Q1273-60096 3. Cartridge Access Door (1) Q1273-60091 4. Push-Push Mechanism (1) Q1273-60092
