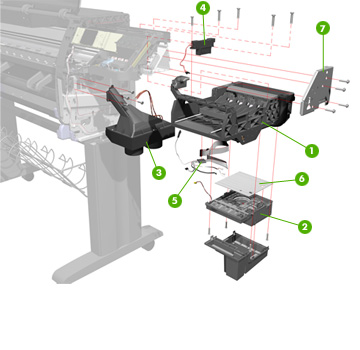

Right Hand Assemblies


	1. Service Station (Includes Drop Detector) (1) Q1273-60046 2. Aerosol Fan Assembly (1) Q1273-60047 3. Vacuum Fan Assembly (1) Q1273-60048 4. Drop Detector (1) Q1273-60066 5. Service Station Cable (Includes Printhead Cleaner Door Switch) (1) Q1273-60067 6. Aerosol Filter (1) Q1273-60084 7. Right Bracket (1) Q1273-60086
