Media Entry Assemblies

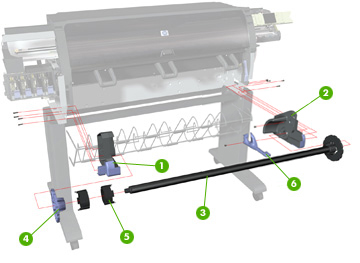

	1. Left Roll Module Assembly (1) Q1273-60080 2. Right Roll Module Assembly (Also includes Right Spindle Lever p/n Q1273-60136) (1) Q1273-60081 3. 42" Spindle (1) Q1273-60121 4. Blue Hub (1) C6090-60105 5. 3" Spindle Adaptors (1) C6090-60112 6. Right Spindle Lever (1) Q1273-60136
