Center Guide and Pinchwheel Assembly

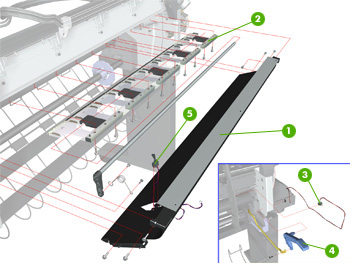

	1. Center Guide (1) Q1273-60059 2. Complete Pinchwheels Assembly (1) Q1273-60040 3. Media Lever Sensor (1) Q1273-60082 4. Media Lever Assembly (1) Q1273-60093 5. Media Sensor (1) Q1273-60079 - Pinchwheels Kit (only contains the wheels) (1) Q1273-60104
