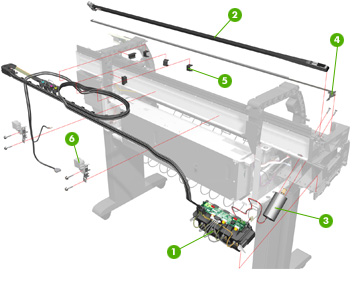

Scan-Axis Assemblies


	1. Ink Supply Tubes and Trailing Cable (1) Q1273-60050 2. Belt and Tensioner Assembly (1) Q1273-60069 3. Scan-Axis Motor (1) Q1273-60071 4. Encoder Strip and Encoder Sensor Kit (1) Q1273-60070 5. Ink Supply Tubes Clips (5) Q1273-60108 6. Rear Tube Brackets (2) Q1273-60112
