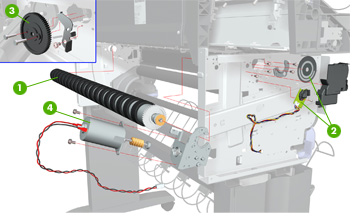

Drive Roller and Media-Axis Motor


	1. Drive Roller (1) Q1273-60039 2. Drive Roller Encoder Kit (1) Q1273-60094 3. Gears and Drive Roller Brake Kit (1) Q1273-60087 4. Media-Axis Motor (1) Q1273-60037
