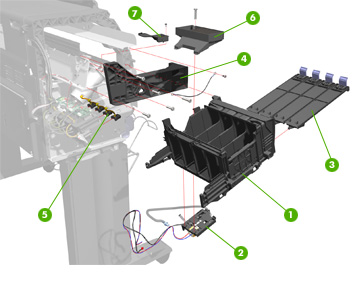

Left Hand Assemblies


	1. Ink Supply Station (without APS) (1) Q1273-60049 2. Air Pressurization Pump (APS) (1) Q1273-60068 3. Cartridge Trays (1) Q1273-60102 4. Left Bracket (1) Q1273-60085 5. ISS to Cartridge Cable (1) Q1273-60117 6. Most Left Spittoons (1) Q1273-60099 7. Middle Left Spittoons (1) Q1273-60100
