Miscellaneous Parts

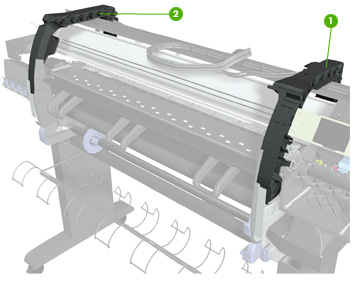

	1. Right Arc (1) Q1273-60097 2. Left Arc (1) Q1273-60098 - Preventive Maintenance Kit (Includes Carriage Assembly (without Carriage PCA), Ink Supply Tubes and Trailing Cable, Scan- Axis Motor, Belt, Encoder Strip (includes Spring and Nut but does not include Encoder Reader), Most Left and Middle Left Spittoons), Scraper and the Media-Axis Drive Motor Brake (with the corresponding support Part) (1) Q1273-60061 - Preventive Maintenance Kit (only includes the Middle Left Spittoons) (1) Q1273-60109 - 2 Sheets of HP Productivity Gloss Media for Service Advance Calibration (1) Q1273-60125 - Labels Kit (includes the Serial Number Label, I/O Connector Label and the Main PCA Cover Removal Label) (1) Q1273-60130 - Power Cord (2.5 meters) for Australia (1) 5961-3589 - Power Cord (2.5 meters) for most European Countries, Korea, Indonesia, Portugal, Germany, Spain, France, Italy and Arabic Countires (1) 8120-6899 - Power Cord (2.5 meters) for Singapore, Arabic Countires and United Kingdom (1) 8120-6898 - Power Cord (2.5 meters) for India, South Africa (1) 8120-6896 - Power Cord (2.5 meters) for USA, Canada, Taiwan, Japan and Arabic Countires (1) 8121-0917 - Jumper Cord for Brazil, Thailand and Philippines (1) 8121-0922 - Jumper Cord for Chili, Uruguay and Argentina (1) 5961-3590 - Power Cord (2.3 meters) for Chili and Uruguay (final cable that is connected to 5961-3590) (1) 8120-6980 - Power Cord (2.3 meters) for Argentina (final cable that is connected to 5961-3590) (1) 8120-6869 - Power Cord (2.5 meters) for China (1) 5961-3588
