carriage motor

Switch off the product and remove the power cable.

1. Remove the center cover

2. Remove the right end cover

3. Remove the left end cover

4. Disconnect the cable from the Carriage Motor.

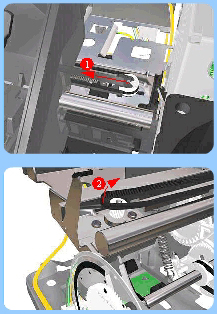

5. Release the Belt from the Carriage Motor by pushing in the Turnaround Assembly (right hand side of the printer) and at the same time releasing the Belt from the Motor on the left hand side of the printer).

6. Remove 2 T-10 screws that secure the Carriage Motor.

7. Remove the Carriage Motor from the
Printer (needs to be removed from
underneath).
