carriage assembly

Switch off the product and remove the power cable.

1. Remove the center cover

2. Remove the right end cover

3. Remove the left end cover

4. Remove the electronics module

5. Remove the power supply unit

6. Remove the service station

7. Remove the ink supply tubes

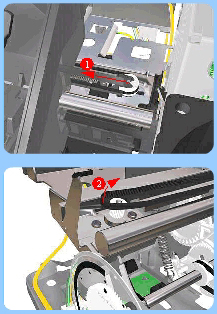

8. Release the Belt from the Carriage Motor by pushing in the Turnaround Assembly (right hand side of the printer) and at the same time releasing the Belt from the Motor on the left hand side of the printer).

9. Release the Trailing Cable clip from the Chassis.

10. Release the Trailing Cable from the
Chassis.

11. Slide the Carriage Assembly to the right and out of the Printer.

12. If the Carriage Assembly is to be replaced, make sure that you remove the belt (in order to install it on the new carriage). Click here to remove the carriage belt

If the carriage is replaced by a new one, make sure that you perform the PRS Adjustment procedure.
