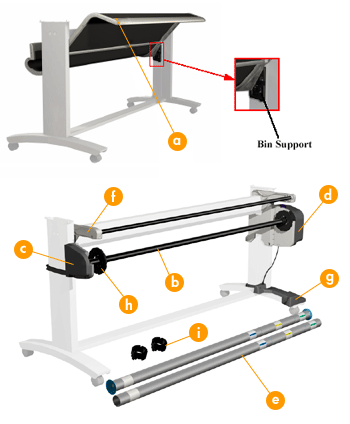

bin and take-up reel

		42" bin
		(includes the Bin Support) C7770-60148

		Take-Up Reel Spindle
		(60" Model) C6095-60282
		Take-Up Reel Spindle
		(42" Model) C6090-60310

		Left Take-Up Reel Holder
		C6090-60183

		Right Take-Up Reel Holder
		C6090-60182

		Take-Up Reel Tubes
		(60" Model) C6095-60189
		Take-Up Reel Tubes
		(42" Model) C6090-60177

		Take-up Reel Deflector

		(60" Model) Q1253-60017
		Take-up Reel Deflector
		(42" Model )Q1251-60076

		Take-Up Reel Sensor

		C6090-60184

		Left Hand Take-Up Reel Spindle Guide
		C6090-60309

		3" Adaptors
		C6090-60112
