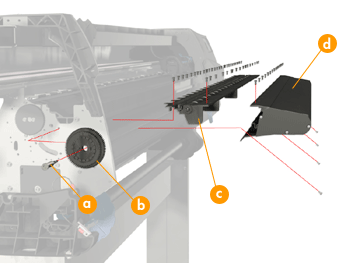

Platen Assemblies - DesignJet 5000 Series

		screw
		C6071-20005

		drive roller gear

		C6090-60096

		center platen assembly
		(60" model) C6095-60284
		center platen assembly
		(42" model) C6090-60311

		front platen assembly
		(including screws) (60" model) C6095-60174
		front platen assembly
		(including screws) (42" model) C6090-60079

Platen Assemblies - DesignJet 5500 Series

		screw
		C6071-20005

		drive roller gear

		C6090-60096

		center platen assembly
		(60" model) C6095-60284
		center platen assembly
		(42" model) C6090-60311

		heater assembly
		(including screws) (60" model) Q1253-60011
		heater assembly
		(including screws) (42" model) Q1251-60031
