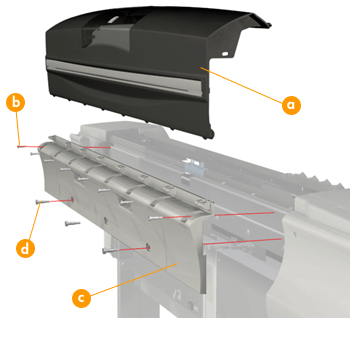

Top and Back Covers

		top cover
		(DJ 5000 series) (60" model) C6095-60278
		top cover
		(DJ 5500 series) (42" model) C6090-60291
		black top cover
		(DJ 5000 series) (60" model) Q1253-60012
		black top cover
		(DJ 5500 series) (42" model) Q1251-60032

		screw
		0515-0382

		back cover
		(60"model) C6095-60141
		back cover
		(42"model) C6090-60037

		screw
		C6071-20026
