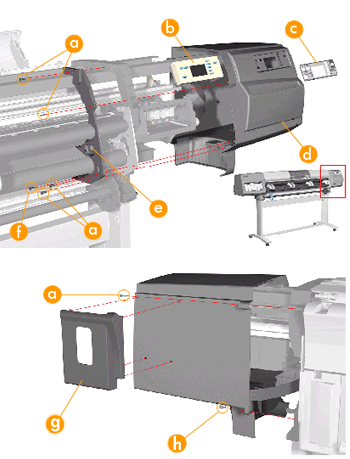

right hand cover

screw
0624-0771
  front panel assembly
  (includes front panel cable) C6090-60111
  overlay (english)
  (DJ 5000 series) C6095-90021
(DJ 5500 series) Q1251-90011
overlay (korean)
(DJ 5000 series) C6095-90022
(DJ 5500 series) Q1251-90012
overlay (taiwanese)
(DJ 5000 series) C6095-90023
(DJ 5500 series) Q1251-90013
overlay (german)
(DJ 5000 series) C6095-90024
(DJ 5500 series) Q1251-90014
overlay (french)
(DJ 5000 series) C6095-90025
(DJ 5500 series) Q1251-90015
overlay (spanish)
(DJ 5000 series) C6095-90026
(DJ 5500 series) Q1251-90016
overlay (italian)
(DJ 5000 series) C6095-90027
(DJ 5500 series) Q1251-90017
overlay (japanese)
(DJ 5000 series) C6095-90028
(DJ 5500 series) Q1251-90018
overlay (portuguese)
(DJ 5000 series) C6095-90029
(DJ 5500 series) Q1251-90019
overlay (chinese)
(DJ 5000 series) C6095-90030
(DJ 5500 series) Q1251-90020
  right hand cover
  (includes front panel cable) C6090-60038
right hand trim
(includes window and lever sensors) C6090-60043
  screw
  0515-2248
  quick reference guide holder
  C6095-40065
  screw
  0515-4268
