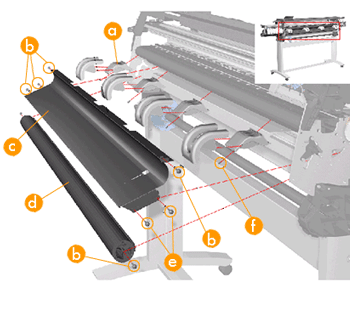

center guide, deflector and entry roller (DJ 5000 series)

		media deflectors
		C6090-60104

		screw

		0515-2986

		center guide
		(60" model) C6095-60180
		center guide
		(42" model) C6090-60075

		entry roller
		(60" model) C6095-60178
		entry roller
		(42" model) C6090-60077

		screw
		C3180-20001

		screw
		0515-2250

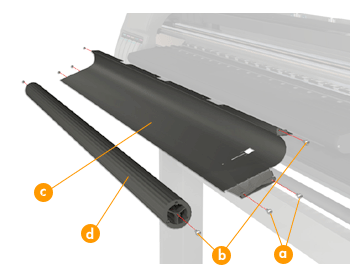

center guide and entry roller (DJ 5500 series)

		screw
		C3180-20001

		screw

		0515-2986

		center guide
		(60" model) C6095-60180
		center guide
		(42" model) C6090-60075

		entry roller
		(60" model) C6095-60178
		entry roller
		(42" model) C6090-60077
