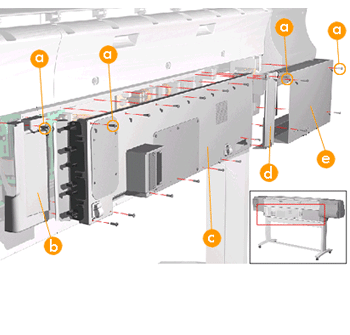

Rear Electronics Access Covers

		screw
		0515-0382

		right rear cover
		Q1251-60085

		electronics module cover
		(includes EIO cover and hard disk cover) C6090-60032

		left rear cover
		Q1251-60086

		extension cover
		(60" model only) C6095-C60140

		electronics cable retainer
		C6090-60109
